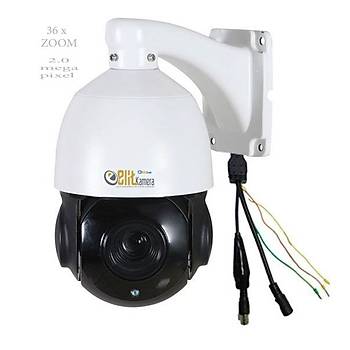

Elit Ahd 7040 Mini Speedome Kamera 2.0 M.pixel

Model

Elit 7040 Ahd Mini Speeddome Kamera 36x Zoom

Sensor

1/3'', 2 megapixel, progressive scan, CMOS

Lens

4.5 ~ 135 mm (30x optical zoom), AF automatic focusing and motorized zoom lens

Angle of View (H)

62.9° (wide) ~ 2.3° (tele)

Iris

Auto/Manual; F1.6 ~ F4.4

Shutter

Auto/Manual; shutter time: 1/6 s ~ 1/100000 s

Minimum Illumination

Colour: 0.03 lux (F1.6, AGC ON)

0 lux with IR

S/N

>52dB

Day/Night

IR-cut filter with auto switch (ICR)

Defog

Digital Defog

WDR

Digital WDR

Video

Max. Resolution

1920 × 1080

Video Compression

Ultra 265,H.265, H.264, MJPEG

Frame Rate

Main Stream:2MP (1920×1080):Max. 30 fps;
Sub Stream:2MP (1920×1080):Max. 30 fps;
Third Stream: D1 (720×576): Max. 30 fps

Video Streaming

Triple

HLC

Destekler

BLC

Destekler

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

ROI

Up to 8 areas

EIS

Destekler

Motion Detection

Up to 4 areas

Smart

Behavior Detection

Intrusion, cross line, motion detection

Exception Detection

Audio detection

Intelligent Identification

Face detection

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression

G.711

Two-way audio

Supported

Suppression

Supported

Sampling Rate

8 KHZ

Storage

Edge Storage

Micro SD, up to 128 GB

Network Storage

ANR

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP

Compatible Integration

ONVIF(Profile S, Profile G), API

Pan & Tilt

Pan Range

360° (endless)

Pan Speed

0.1°/s ~ 240°/s

Preset speed: 300°/s

Tilt Range

–15° ~ +90° (auto reverse)

Tilt Speed

0.1° ~ 160°/s

Preset speed: 240°/s

Number of Preset

1024

Patrol

Up to 16 patrols, up to 32 presets per patrol

Note: The total number of patrols and patterns is 16.

Pattern

Up to 16 patterns, with the total recording time not less 15 minutes per pattern

Interface

Audio I/O

Audio cable

1 Input: impedance 35 k?; amplitude 2 V [p-p]

1 Output: impedance 600 ?; amplitude 2 V [p-p]

Alarm I/O

1/ 1

Network

1 RJ45 10M/100M Base-TX Ethernet

General

Power

24 V AC±25%, 24 V DC±25%

Power consumption: 9 ~ 42W

Dimensions (Ø x H)

Ø227 x 359.4 mm (Ø8.9'' x 14.2'')

Weight

5.28 kg (11.6 lb)

Working Environment

–40°C ~ +65°C (-40°F ~ 149°F), Humidity ? 90% RH(non-condensing)

Ingress Protection

IP66
